Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine

Name: Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine
Brand: Matsumoto
Price: 20500 USD

Quality Horizontal Flat Bed CNC Lathe Machine CK61125 1500mm Heavy Duty Lathe Machine wholesale

Brand Name : Matsumoto

Model Number : CK61125

Certification : CE

Place of Origin : China

MOQ : 1

Price : $20500-22500

Payment Terms : T/T

Delivery Time : 20 working days

Packaging Details : plywood case

Type : Horizontal

Condition : New

Weight : 5100kg

Cnc or not : CNC

Voltage : Customer's Requirement

Dimension(l*w*h) : 3700/4200/4700*2000*2200mm

Precision : High Precision

Contact Now

CK61125-1500mm Heavy Duty CNC Lathe Machine Flat Bed CNC Lathe Machine

Description:

The Heavy Duty CNC Lathe CK61125 is a high-performance, rigid numerical control lathe specifically engineered for processing large, heavy workpieces with high precision requirements. Integrating advanced heavy-duty machining technology, robust mechanical structure, and intelligent control systems, it serves as a core equipment in key industrial fields requiring heavy cutting and high-stability processing.

MODEL	CK61125
Max. Swing over bed	1250mm
Max. Swing over cross slide	800mm
Max. Processing length	1500/2000/3000mm
Spindle speed step	Mechanical/Hydraulic 4 stepless
Spindle speed	30-84/53-150/125-350/300-835
Spindle nose	D11
Spindle hole front taper	METRIC120/1:20
Spindle bore	105/130mm
Spindle motor	11/15kw
X/Z axis positioning accuracy	0.025/0.03
X/Z axis repeat positioning accuracy	0.01/0.015mm
X/Z axis travel	X:420 Z:1500/2000/3000
Processing accuracy	IT6-IT7
Workpiece surface roughness	Ral.6
X/Z axis rapid traverse	X:4mm/min Z:6mm/min
Tail stock quill dia	100mm
Spindle taper	MT6
Chuck size	400mm 3jaw(630mm 4jaw)
X/Z axis feed motor torque	X:10Nm Z:15Nm
Quill travel	250mm
Quill taper	MT6
Tool post type	4-position electric turret
Cutting tool size	40*40mm
Guide form	Hard guide
Machine dimension	3700/4200/470020002200mm
Weight	5100/6000/7200kg

	FOUR-JAW CHUCK Strong clamping during work, long use time.
	ELECTRIC CONTROL BOX The wiring of the electric control box is neat and reasonable, and the original electric parts adopt brand accessories.
	TOOL HOLDER Four-station tool holder, multi-tool quick change.
	GUIDE The guide rails are quenched by super audio frequency, and the sliding guide rails are all pasted with wear-resistant plastic.
	TAIL STOCK Standard with manual tail stock, optional:Hydraulic or pneumatic type tail stock.

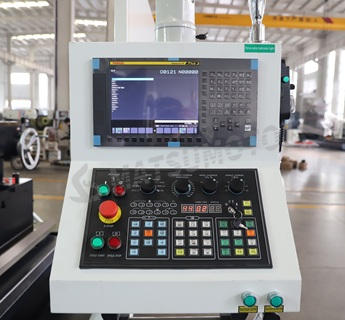

	CNC CONTROL SYSTEM Standard:GSK Optional:FANUC/MITSUBISHI etc.

CNC Lathe use:
The machine tool is automatically controlled by the CNC system to perform various kinds of turning of inner holes, outer circles, conical surfaces, arc surfaces, and threads, Simple programming, high precision and other advantages.

CNC Lathe Features:
Widened high stability bed
Four-speed speed change of main shaft, stepless frequency conversion speed regulation.
Widened carriage
Automatic centralized lubrication
Overall bed
